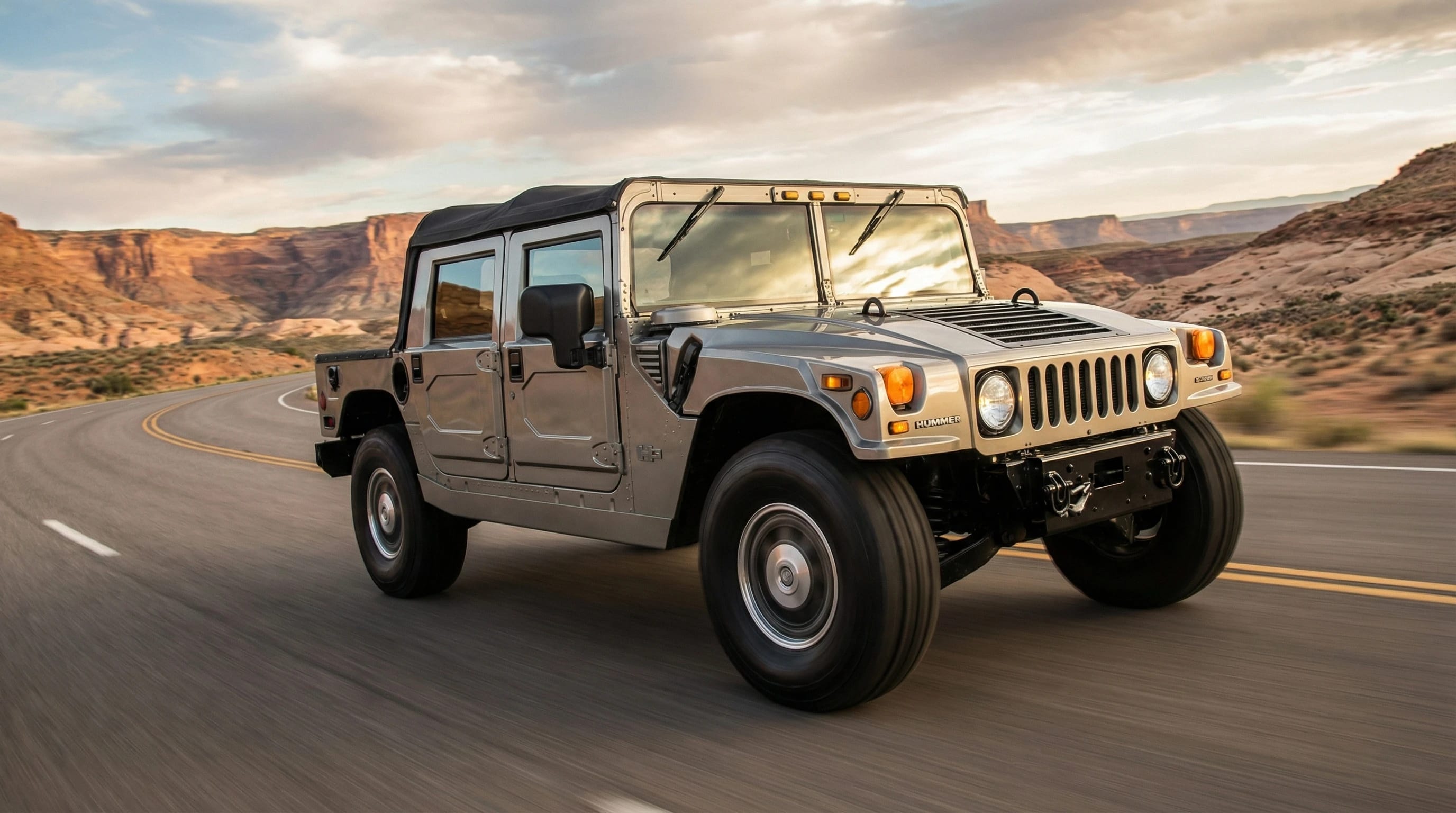

2006 Hummer H1 Alpha Open TOP 4DR AWD
Open Top 4dr All-wheel Drive
12.3 sec
0-60 mph
18.9 sec
@ 77 mph
300 hp
Power
520 lb-ft
Torque
7,847 lbs
4x4
Overview
Vehicle Details
Year:
2006
Make:
Hummer
Model:
H1 Alpha
Trim:
Open TOP 4DR AWD
Style:
Open Top 4dr All-wheel Drive
Base Price:
$125,160
Drive:
4x4
Dimensions & Weight
Curb Weight:
7,847 lbs
Length:
184.5 in.
Width:
86.5 in.
Height:
79 in.
Wheelbase:
130 in.
Fuel:
28.5 gal.
Engine & Powertrain
Derived Output
Horsepower:
315 hp @ 3,000 rpm
Torque:
520 ft-lbs @ 1,600 rpm
Advertised Output
Horsepower:
300 hp @ 3,000 rpm
Torque:
520 ft-lbs @ 1,600 rpm
Engine:
6.6l V-8 Ohv Turbo/supercharged
Displacement:
6.6 liters
Compression Ratio:
16.80 to 1
Valves:
32
Engine Config:
Standard
Redline:
3,800 rpm
Dyno Chart
Power vs torque across the rev range
Performance
All times derived from MotorMatchup simulation using street surface.
Acceleration
0-60 mph (1ft):
12.28 sec
0-60 mph:
12.75 sec
0-100 mph:
37.01 sec
Top Speed:
108 mph
Distance
⅛ mile:
12.39 sec @ 59.4 mph
¼ mile:
18.9 sec @ 76.6 mph
½ mile:
29.39 sec @ 92.4 mph
1 mile:
47.23 sec @ 106.9 mph
Drivetrain
Front Tires:
LT318/75SR17
Rear Tires:
LT318/75SR17
Tire Compound:
Run Flat Performance
Transmission:
5-speed Automatic
Final Drive:
2.56
Gear Ratios
1: 3.1
2: 1.81
3: 1.41
4: 1
5: 0.71
R: 4.49
Speed vs RPM
Gear spacing and speed bands
